2023 Carmel Bach Festival Early Keyboard Gallery

Copyright © 2023 CBH
Next 1K gifBack 1K gif

INSTRUMENT The Flemish Single Harpsichord after 1635 Ruckers The Flemish Double Harpsichord after 1624 “Colmar” Ruckers The German Double Harpsichord
after 1722 Johann Heinrich Gräbner
The Fortepiano after Mozart’s Geburtshaus Walter c1782 The
Continuo
Organ
The
Continuo
Organ

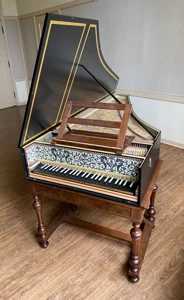

Favia Ruckers Single Harpsichord 9K jpeg
Info 1K gif

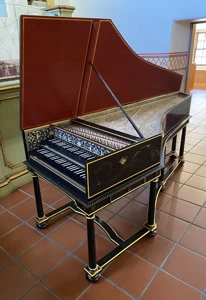

Colmar Ruckers Double Harpsichord 8K jpeg
Info 1K gif

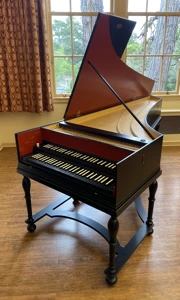

Gräbner German Double Harpsichord 10K jpeg
Info 1K gif

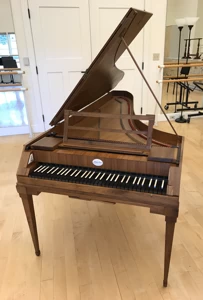

Belt Walter fortepiano 8K jpeg
Info 1K gif
Klop Organ 8K jpeg
Info 1K gif
Klop Organ 8K jpeg
Info 1K gif
DISPOSITION

2 x 8⁠´, 1 x 4⁠´, no buff,
registers worked by levers on wrestplank

2 x 8⁠´, 1 x 4⁠´, buff on back 8⁠´
Stop registers worked by levers on wrestplank
2 x 8⁠´, 1 x 4⁠´, buff on front 8´
Stop registers worked by wooden levers on wrestplank
Double strung up to g', then triple strung 8⁠´, 4⁠´, 2⁠´, 11/3⁠´
Divided stop registers
(Quint to treble only)
8⁠´, 4⁠´, 2⁠´, 22/3⁠´
Divided stop registers
(Quint to treble only)
RANGE One 52-note
keyboard
with ebony naturals, bone-slipped stained cherry sharps, & pearwood arcades
BB–d'''
Two 55-note
reverse keyboards
with bone-slipped sharps
GG,AA–d'''
Two 58+1-note
reverse keyboards
with bone-slipped sharps
FF–d'''
One 63-note
reverse keyboard
with bone-slipped ebony sharps, & gilded ebony keyfronts
FF–g'''
One 54-note
reverse keyboard
with cherry sharps C–f'''
One 54+1-note
reverse keyboard
with snakewood sharps C–f'''
TRANSPOSITION non-transposing A415 A415/A440 A415/A440 A430
A440 capable
A415/A440/A466 A415/A440
STRINGING Strung in Birkett Red & Yellow Brass, and P-wire Strung in Malcolm Rose Red & Yellow Brass, and Soft Iron wire Strung in Birkett Red & Yellow Brass, and P-wire Strung in Malcolm Rose Yellow Brass, and “B” Iron wire, zither pins All wooden pipes All wooden pipes
ACTION Tapered pearwood jacks with Canada goose quill plectra Tapered pearwood jacks with Delrin plectra, working in leathered registers Tapered pearwood jacks with Canada goose quill plectra

Viennese action with metal kapsels, complete backcheck

Knee-operated dampers and moderator

Mechanical Mechanical
CONSTRUCTION

Poplar case, Italian spruce soundboard, beech & cherry bridges

Lime case, lid & bottom, Italian alpine spruce soundboard, pearwood bridges & rails Ponderosa pine case, lid & bottom, Norway spruce soundboard, maple bridge & rails Walnut veneered case, solid walnut lid, Sitka spruce soundboard

European cherry case

Self-contained 110V blower

European cherry case

Self-contained 110V blower

DECORATION

Soundboard painting by Janine Johnson

Gilded rose

Black case interior & exterior, bright mouldings, gilded lid bands

Flemish papers to keywell & case rim

Soundboard painting by Margrit Haberlin after the original instrument

Gilded rose

Varnish craquelure case decoration by Adrian Card inspired by Joris Hoefnagel’s illuminations in the Mira Calligraphiae Monumenta, gilded mouldings, Ruckers-style brass hinges

Hand-printed Flemish papers to keywell and case rim

Soundboard rose

French polished case

Scrimshaw plaques for nameboard inscription & keycheek ornament

Pierced panels to sides & back Pierced panels to sides & back
STAND & ACCESSORIES

Eight leg table stand in Claro walnut with concealed music drawer

Matching music desk & lid stick

Eight leg table stand

Wenge music desk & lid stick

Six leg table stand

Matching maple music desk

Five square tapered legs Instrument rests directly on floor Instrument rests directly on floor
SIGNATURE DOMINIC FAVIA FECIT CALIFORNIA [2021] KEVIN FRYER • SAN FRANCISCO • 1998 JOHN MURDOCH PHILLIPS
BERKELEY CALIFORNIA
ANNO 2010
PHILIP BELT
[Op26 1981]
GC KLOP
GARDEREN
[unsigned —
GC KLOP
GARDEREN]
PROVENANCE

Private ownership,
Berkeley, CA

Private ownership,
Jackson, WY
Private ownership,
Palo Alto, CA
Private ownership,
New York, NY
San Francisco Bach Choir UC Berkeley
CONCERT USE
Subject to change
Rehearsal & coaching instrument; Fri Foyer Mon, Tue & Sun concerts; Thu Twilight in the Cathedral; Best of the Fest Wed Intermezzi

Sat concert; 12 Jul Twilight; Mon Foyer; Best of the Fest

Mon, Tue & Sun concerts; VBA Showcase; Best of the Fest Wed & Fri Intermezzi; Thu Twilight in the Cathedral
All early keyboards prepared throughout the Carmel Bach Festival season by Carey Beebe.
